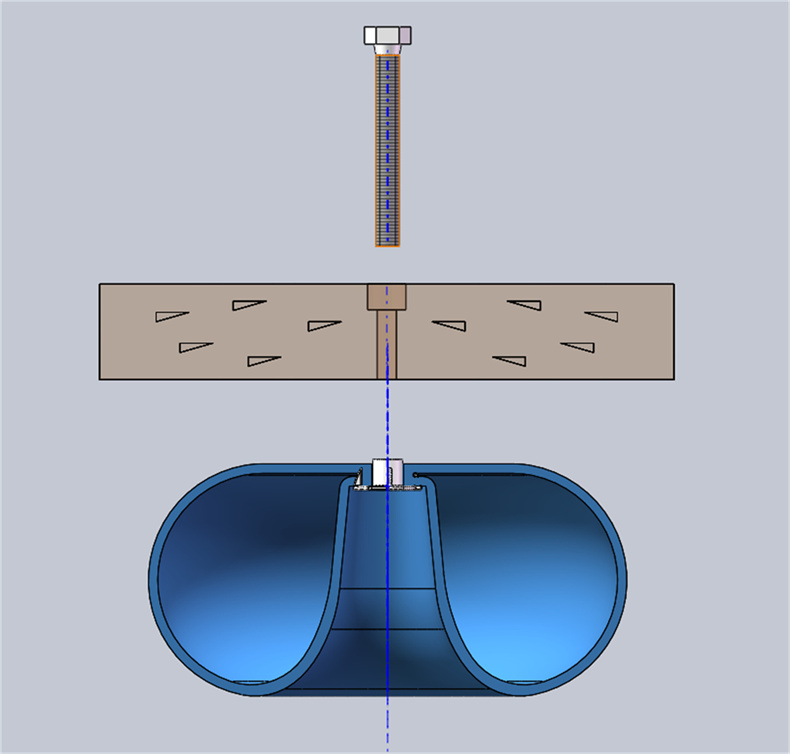

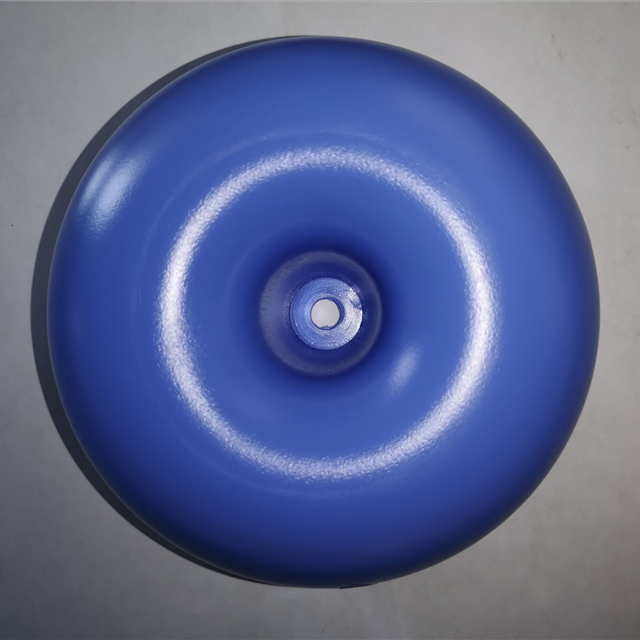

Name: Shockproof ball, also known as shock cushion, four jaw mounting nut with M8 (optional without M8 nut)
Materials: Polyethylene

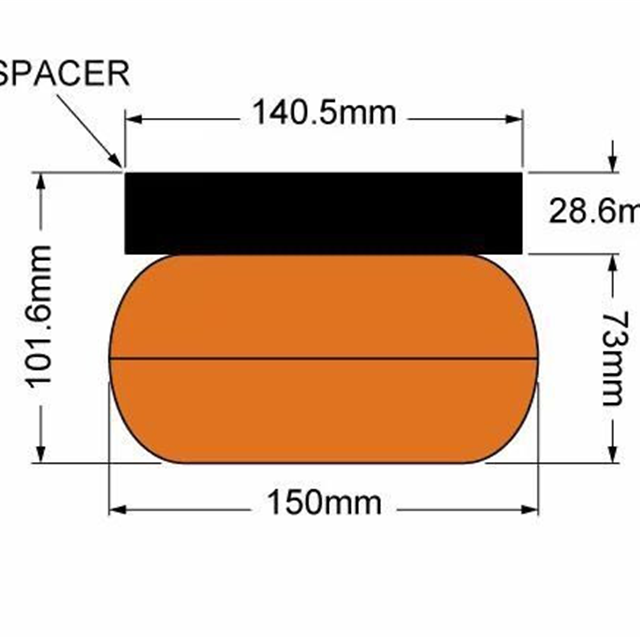

Size: 150*73mm

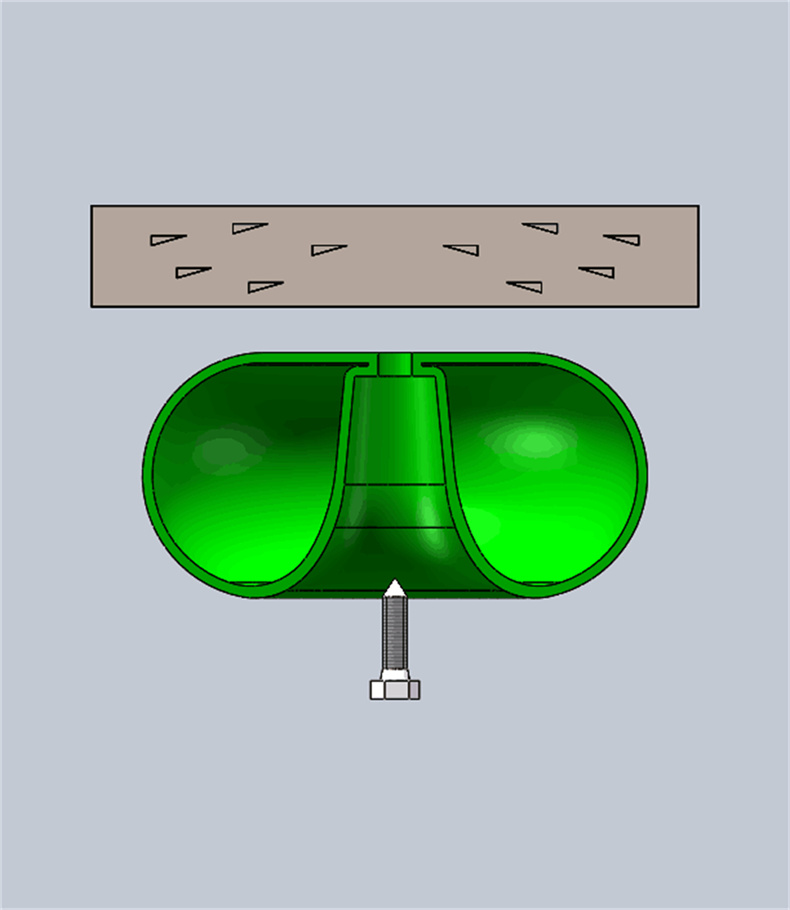

Shockproof ball + increasing pad is a kind of air shock absorption device, he installed at the bottom of the tray, with light weight, small volume, to provide suitable shock absorption, buffer function. Provide a safe/practical damping solution for packing wooden cases.

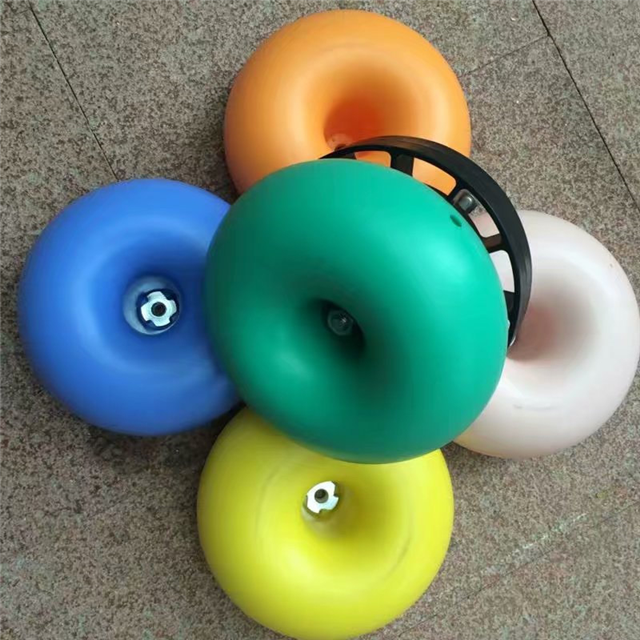

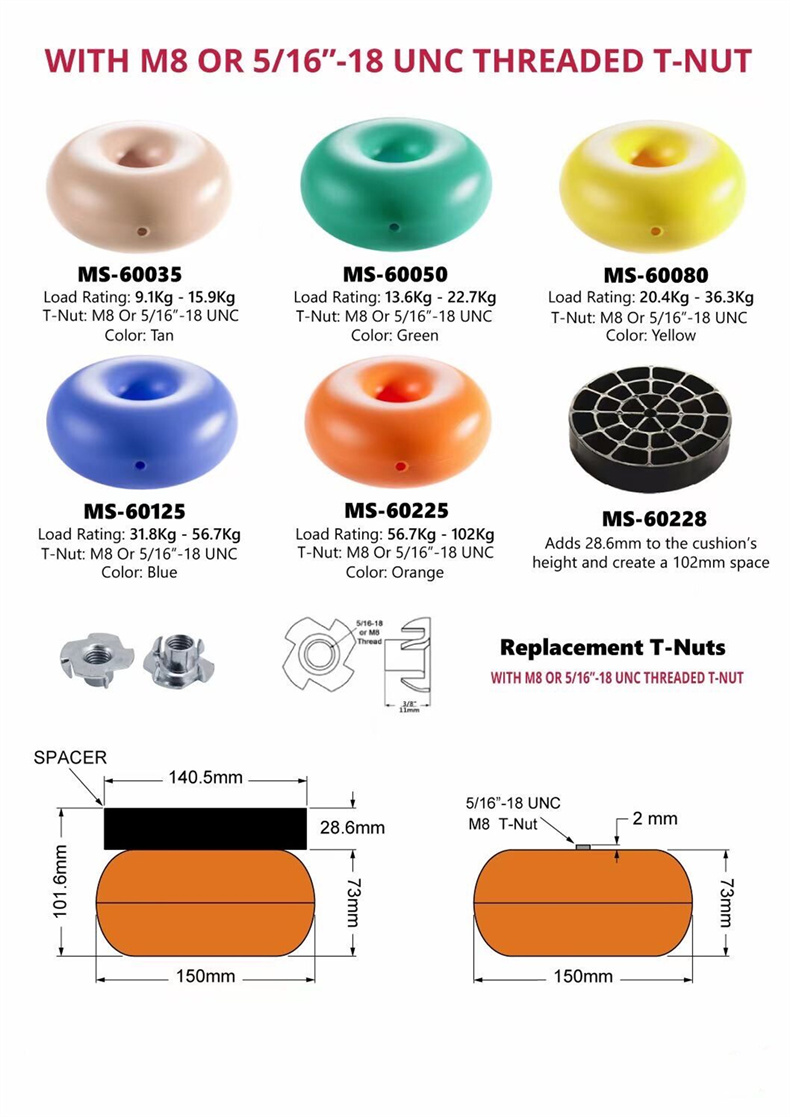

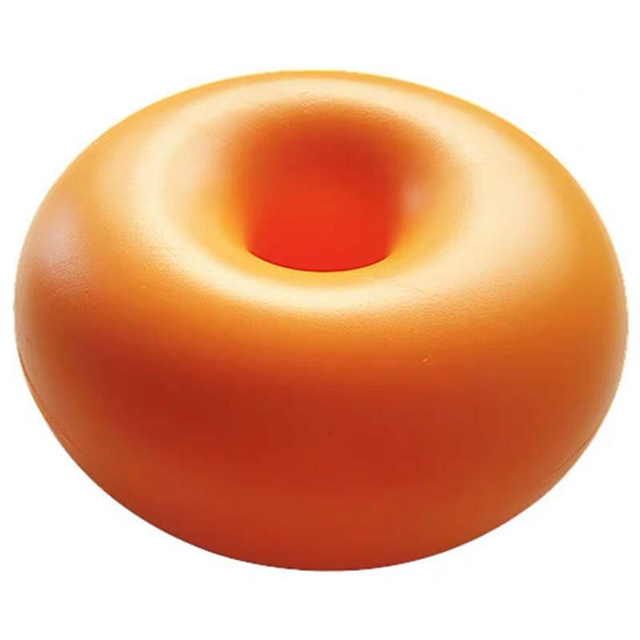

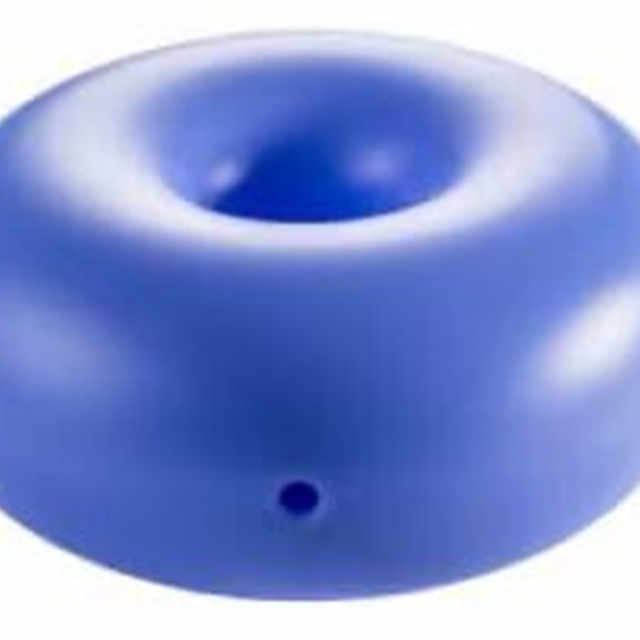

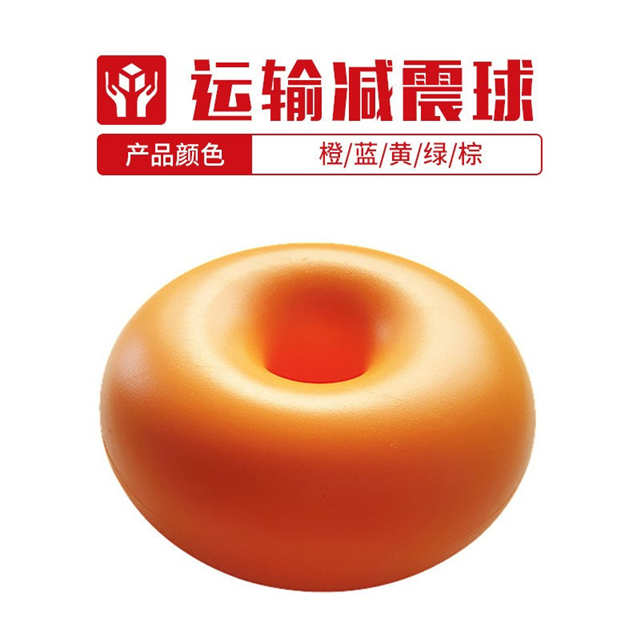

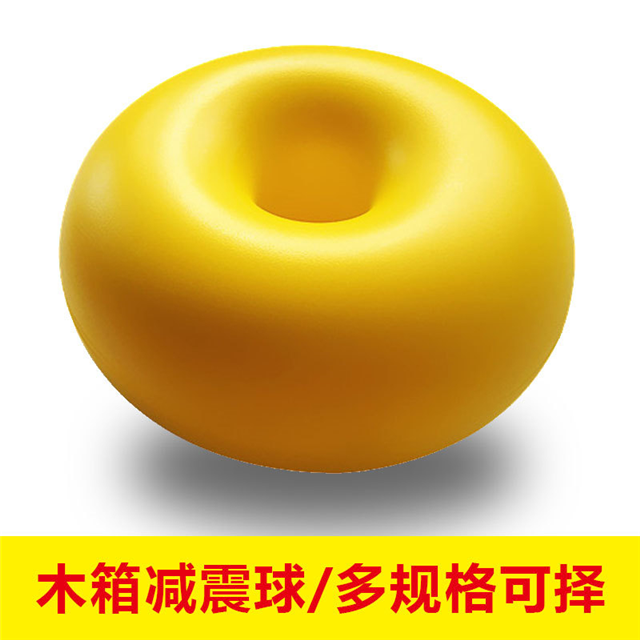

The shockproof balls come in five different colors: orange/blue/yellow/green/brown. The different colors of the shockproof balls represent different load bearing.

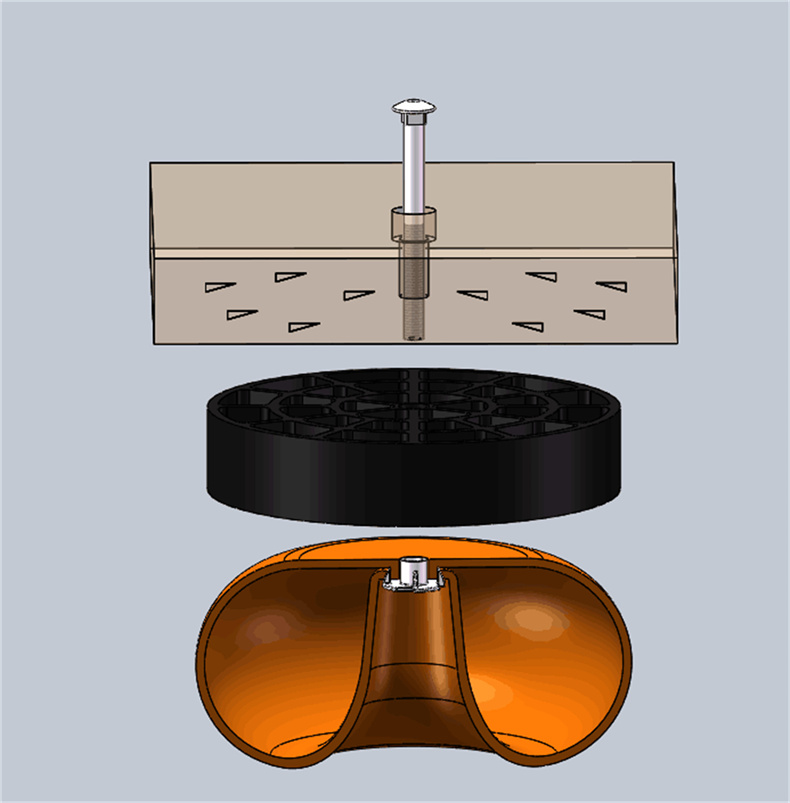

Heightening pad is only black and can be used with shockproof ball (if the bottom height of the wooden box is in the range of forklift truck operation, it is not necessary to use heightening pad).
Product performance:
It has a wide range of application, can be reused and has recycling value
High and low temperature resistance (-40℃ ~ 54℃)
Strong resistance to chemical corrosion
It can slide about 900 meters on the concrete floor
Scope of application:
Widely used in large machinery/machinery, precision instruments/equipment, new vehicles, high value/fragile items, as well as valuable exhibits or products packaging transportation.
With this product, you can:
For the existing board box can be quickly installed shock-proof system, the tray does not need to be redesigned
Reduce packaging design and assembly time
Reduce material and application costs, no longer require wood or foam shock-proof materials
There is no need to buy expensive air-damping cars in transit
Provide protection for instruments and equipment that need to be protected when normal loading and unloading is not possible
Greatly reduces the possibility of damage during the transportation of valuables
Reduce after-sales service cost and maintenance cost
Height does not hinder forklift operation

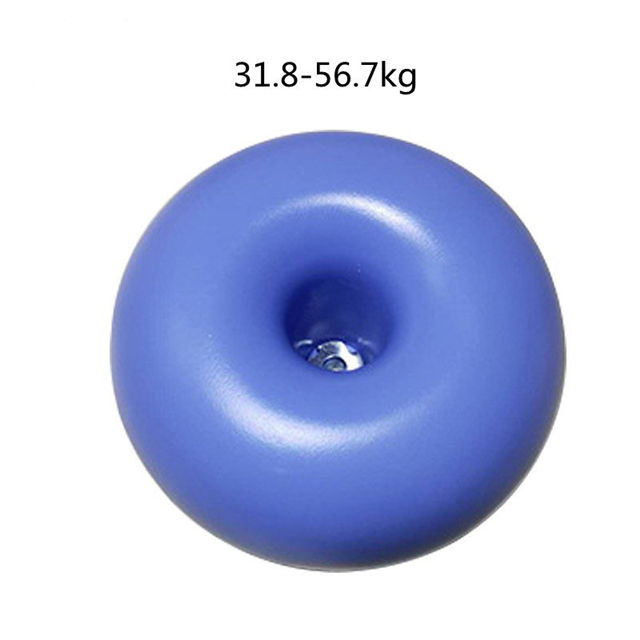

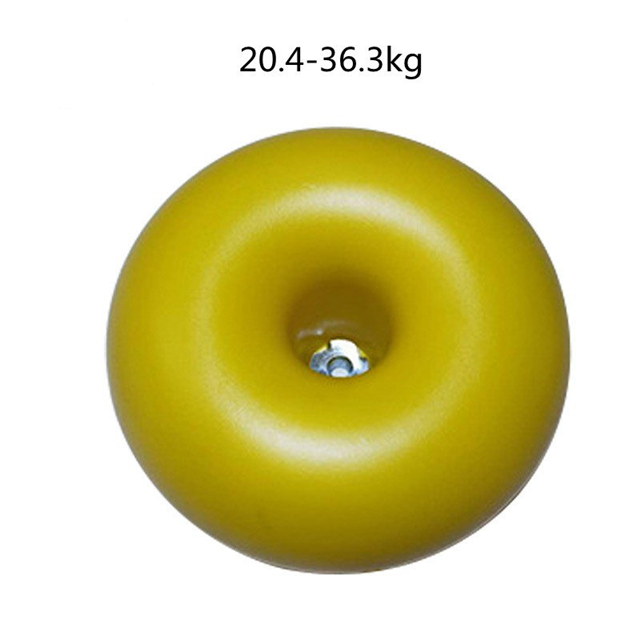

In general, when using shockproof balls, customers will pay attention to how much pressure it can withstand. Because of different colors of shockproof balls, their wall thickness is not the same because of different formulas, so they show different bearing capacity.
If used under the packing wooden case, the weight of the wooden case is divided by the weight of a single shockproof ball (in order to ensure the maximization of the load, but also to make the wooden case achieve the ideal standard, please take the small load standard of a single shockproof ball as the base), the number of shockproof balls needed for a single wooden case is calculated, under the premise of convenient forklift operation, In increasing quantities of 4, 6 or 9 or 12 at the bottom of wooden cases.
Example: Taking the weight of a single wooden box of 1000kg as an example, it is necessary to calculate the number of shock-proof balls (orange) used, 1000kg÷56.7kg/ piece =17.6, rounded to the maximum value of 18, and so on.
That is, 18 orange shockproof balls are needed for a single wooden box weighing 1000kg.
Can be evenly distributed at the bottom of the wooden box according to the arrangement of 3 rows *6 =18.
